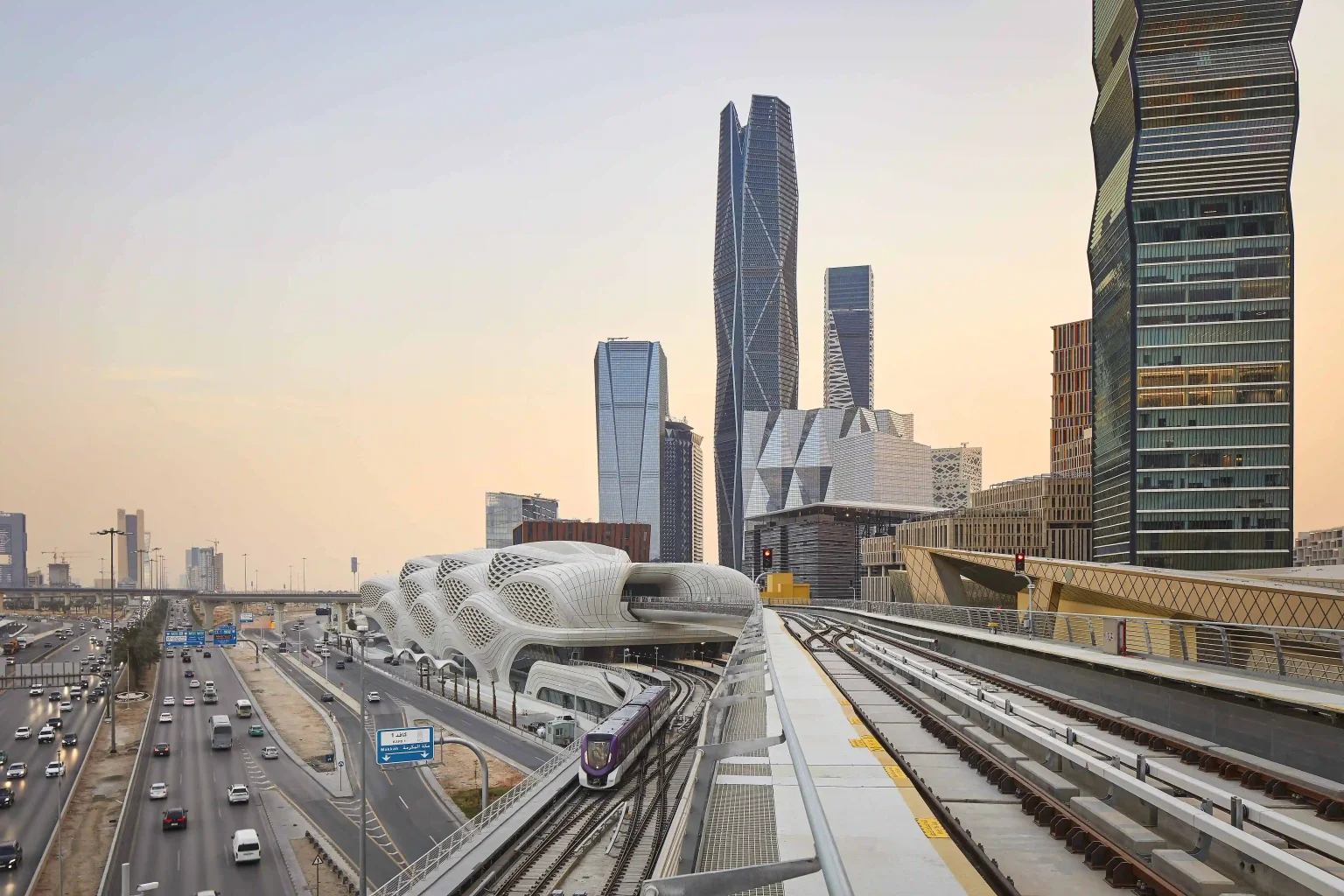

The King Abdullah Financial District (KAFD) Metro Station, designed by Zaha Hadid Architects (ZHA), serves as the key interchange on the new network, connecting the KAFD terminus, King Khalid International Airport, and providing access to the sky bridge for the local KAFD monorail. The station’s six rail platforms over four levels connect with bus and park-and-ride services to create an important multi-modal transport hub for the city, as well as new indoor and outdoor public plazas for the financial district.
The Riyadh Metro network commenced passenger operations on Sunday, December 1st, 2024, with the opening of its Blue, Yellow, and Purple lines (Lines 1, 4, and 6), alleviating traffic congestion, shortening travel times, and improving the quality of life for Riyadh’s growing population.
As the world’s longest driverless transit system, the transformative network spans over 176 kilometers across 6 lines and 85 stations, connecting key districts, business centers, and cultural landmarks in Saudi Arabia’s capital city.
An automated rapid transport system planned by the Royal Commission for Riyadh City (RCRC), Riyadh Metro, meets the needs of residents and visitors alike. With a capacity of 3.6 million daily passengers, the network will reduce the number of car journeys throughout the city and encourage the use of sustainable modes of transport.
Design Focus: Connectivity and Efficiency
Contributing to the identity of Riyadh’s new metro system, the KAFD Metro Station’s design prioritizes connectivity. The station’s predicted rail, car, and pedestrian traffic has been modeled, mapped, and structured to optimize internal circulation and avoid congestion. The resulting configuration is a three-dimensional lattice defined by a sequence of opposing sinewaves (generated from the repetition and frequency variation of the station’s daily traffic flows), which act as the spine for the building’s circulation.

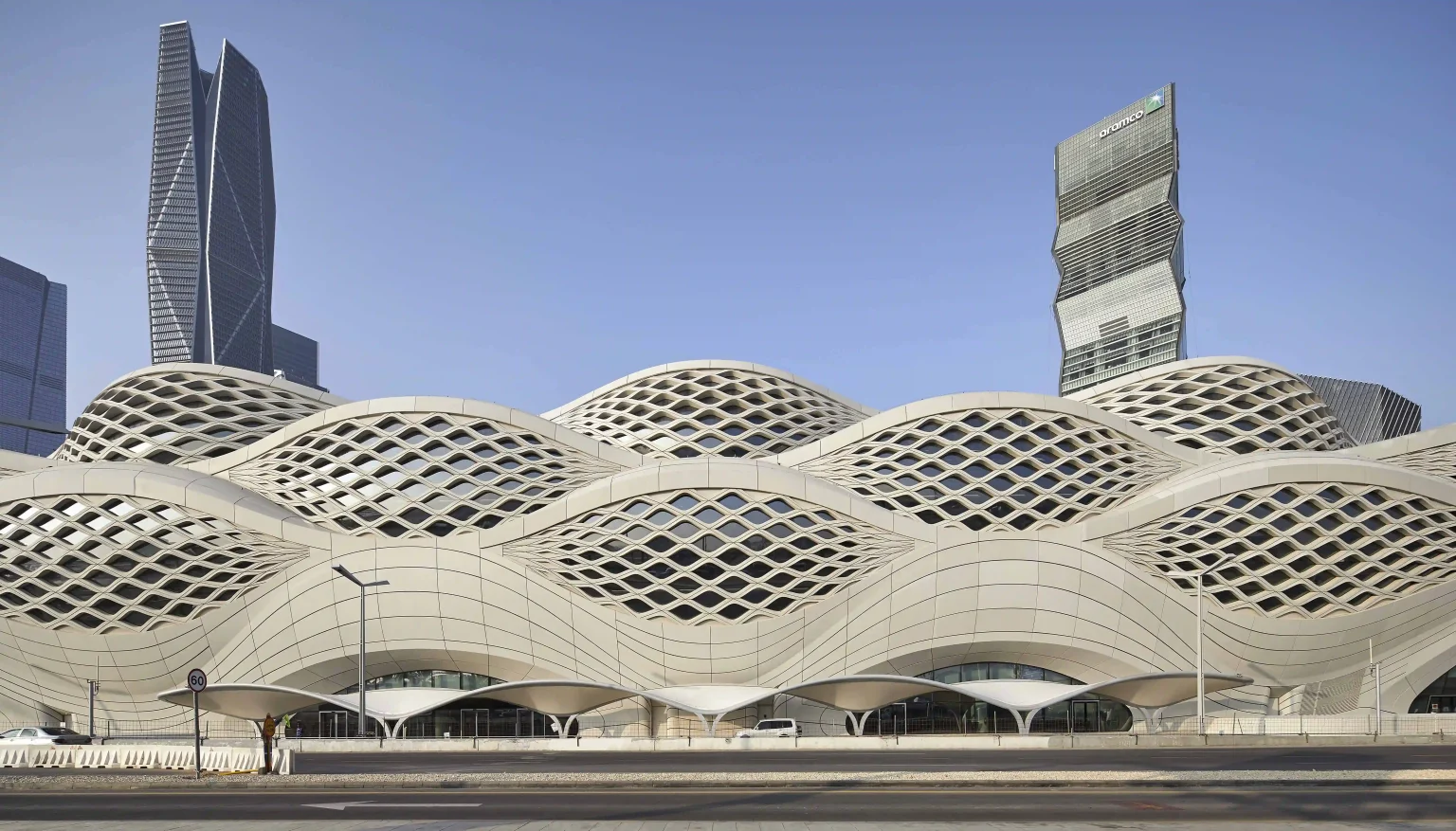

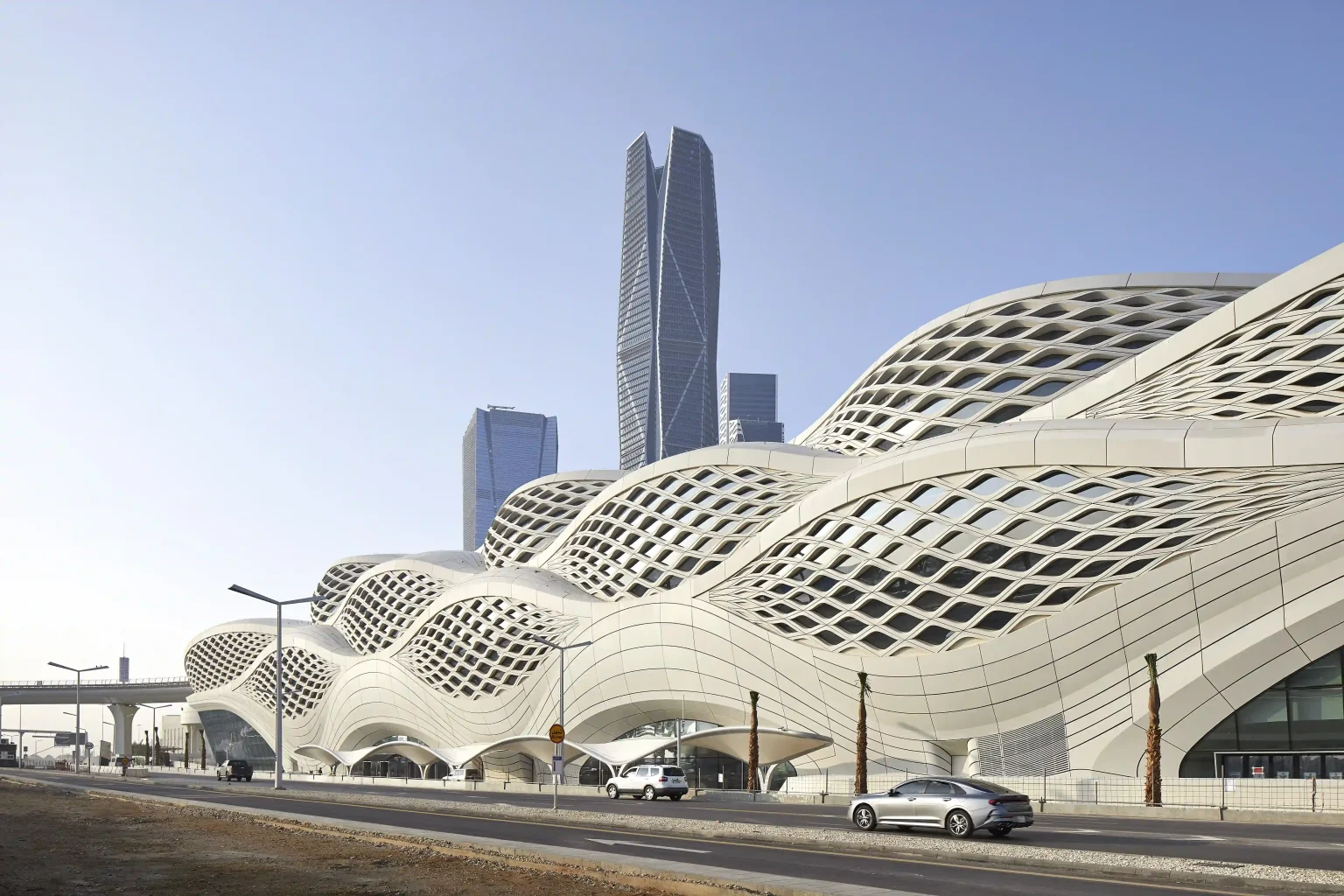

These sinewaves extend to the station’s exterior, clad in ultra-high-performance concrete panels. The façade’s geometric perforations reduce the solar gain as a contemporary reinterpretation of traditional environmental sheltering within the region’s vernacular architecture.
Façade Design Inspired by Nature
The composition of the station’s façade echoes the patterns generated by desert winds in the sand, where multiple frequencies and reverberation generate the complex repetition of patterns evident in the natural world.
The KAFD Metro Station is composed of a set of elements that are highly correlated through repetition, symmetry, and scale. The design was continually optimized by ZHA throughout its development to increase structural efficiencies and environmental performance while also simplifying the construction process without compromising spatial quality, seamlessly integrating the self-supporting structure of its external envelope with the station’s internal structure, which supports the train platforms and viaducts.
Sustainable Design Features of KAFD Metro Station
Providing optimal comfort at minimum energy demand, the station combines effective passive design features with a high-efficiency cooling system that is powered by renewables and automatically adjusts to differing passenger levels throughout the day, while sliding door panels on each platform retain cool air within the station. The KAFD Metro Station has achieved Leadership in Energy and Environmental Design (LEED) Gold certification by the US Green Building Council.
For more information about Zaha Hadid Architects and Patrik Schumacher, watch the episode PATALKS 65 on our YouTube channel!
Project Details:
Project Name: King Abdullah Financial District (KAFD) Metro Station
Architecture: Zaha Hadid Architects
Location: Riyadh, Saudi Arabia
Structural Engineer: BuroHappold
Completion: December 1st, 2024 (public opening)
Photography: © Hufton + Crow Photography
The project description is provided by Zaha Hadid Architects.
